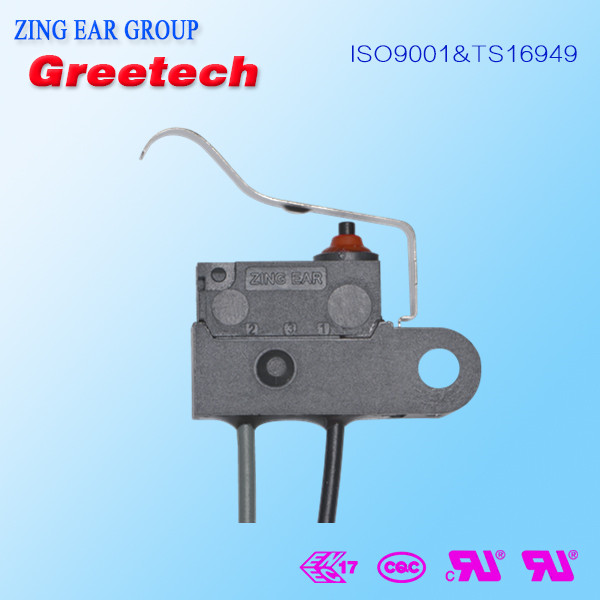

0.1a 125vac electrical waterproof subminiature micro switch t85 5e4

FOB Reference Price:Get Latest Price
US $0.3-1.2 / Pieces | 100 Piece/Pieces subminiature micro switch t85 5e4 samples available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZING EAR
Model Number:
G303-130E10B1-GF100
Max. Current:
0.1A/3A
Max. Voltage:
125/250VAC,48VDC
Operating Temperature:
40T85
Protection Level:
IP67
Product name:
0.1a 125vac electrical waterproof subminiature micro switch t85 5e4
Electrical life:
Min. 100,000cycles (Depend on Part No.)
Mechanical life:
Min. 500,000cycles
Operating force:
130gf max w.o lever
Terminal:
Wire leads to bottom
Function:
SPST-NC
Lever type:
Simulated Roller Lever, No. 10#
Post:
A type no post
Certification:
UL, cUL, CE, ENEC, CQC, RoHS, Reach.
Application:
Auto Electronics, Appliance and Industrial Control etc.
SupplyAbility
SupplyAbility:
3000000 Piece/Pieces per Month subminiature micro switch t85 5e4 delivery on time
Packaging & Delivery
Packaging Details
T85 5e4 3a top quality wholesale electronic best price micro switch
1. Pack out: 1000 pcs/ctn.
2. Gloss weight: about 3.9kgs
Port
Shenzhen,Guangzhou,HK
Lead Time :
2 weeks

0.1a 125vac electrical waterproof subminiature micro switch t85 5e4



Product Description



Feature



-Designed for water and dust tight(IP67)

-Small compact size

-Global safety approvals

-Long life and high reliability

-Variety of levers

-Wide range of wiring terminals

-Widely used in Automotive Electronics, Appliance and Industrial Control etc.

-Customized designs

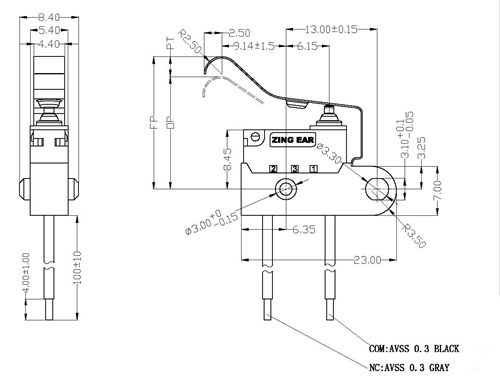

Drawing

Operating Characteristics

OF

Max.

(gf)

RF

Min.

(gf)

PT

Max.

(mm)

OT

Min.

(mm)

DT

Max.

(mm)

OP

(mm)

120106.01.52.015.0±2.0



 Parameters
Rating0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5.
Operating FrequencyElectrical0.1A-120/3A-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative) 100mΩ Max
Insulation Resistance(at 500VDC) 100MΩ Min
Vibration durability 10~55Hz, move 0.75mm(p-p)
Dielectric Strength 500VAC (50~60Hz)
Storage Temperature -40-+85
Storage Humidity 85% RH Max
Service LifeElectrical6,000~500,000/cycles(Depend on part number)
MechanicalMin.500,000/cycles



Application



-Car                                                      -Electric Tooth Brush

-Air-conditioner                                     -Toys

-Communication                                   -Home Appliance

                                                             -Motor Control

Related products













Packaging & Shipping







Packing list



No.Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
(pcs)(pcs)(pcs)(Days)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5





Shipping way





Company Information

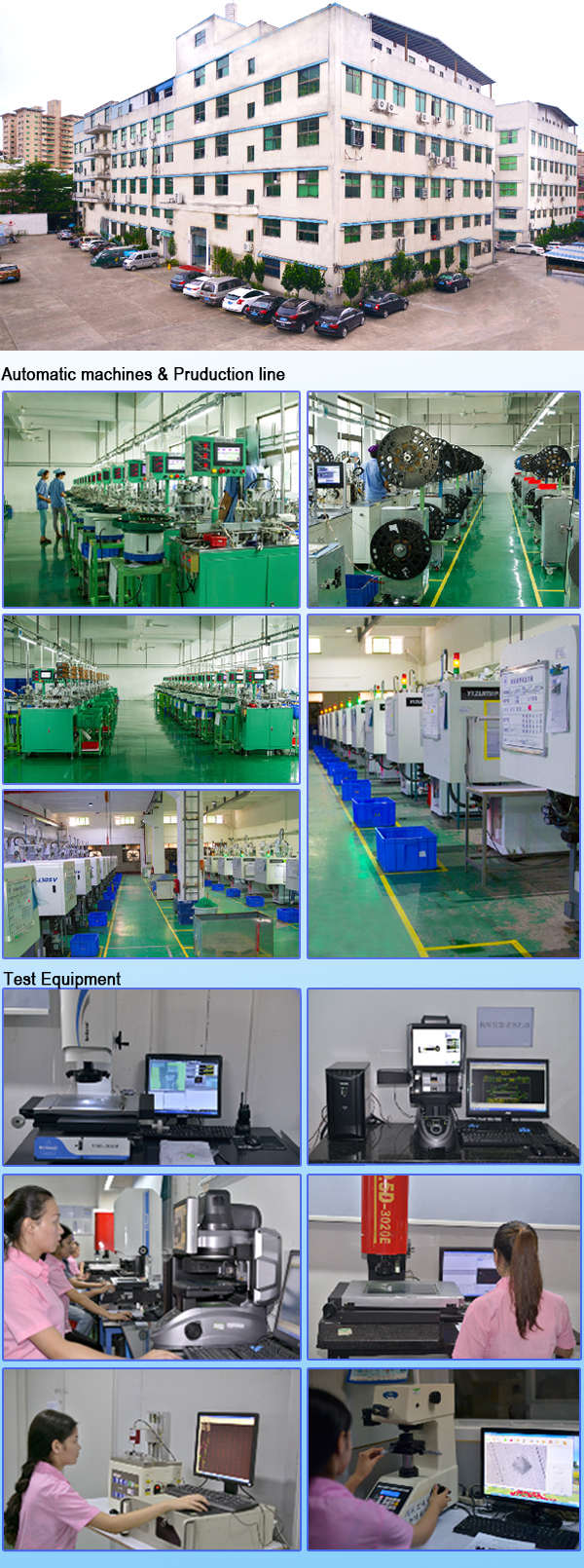

Greetech Advantages:
