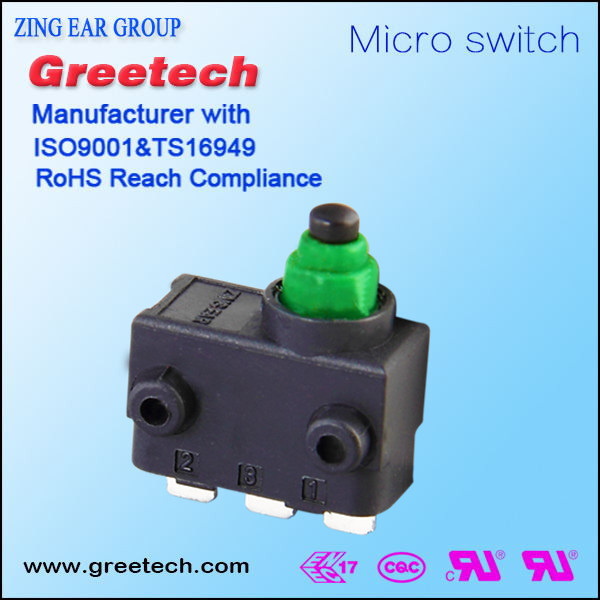

3A 12VDC ,0.1A 125/250VAC 40t85 IP67 auto micro switches

FOB Reference Price:Get Latest Price
US $0.322-0.883 / Pieces | 100 Piece/Pieces Auto micro switches samples available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZING EAR
Model Number:
G3
Max. Current:
3A
Max. Voltage:
125/250VAC,48VDC
Operating Temperature:
40T85, 40T85
Protection Level:
IP67
Product Name:
3A 12VDC ,0.1A 125/250VAC 40t85 IP67 auto micro switches
Payment Terms:
UL,CUL,ENEC,CQC.
Terminal:
Solder terminals
Company assurance system:
ISO9001 & TS16949
Mechanical life:
100,000cycles
Lever type:
Pin Plunger
Rating:
0.1A/125/250VAC 12vdc
Function:
SPDT
Operating force:
180gf
SupplyAbility
SupplyAbility:
3000000 Piece/Pieces per Month Auto micro switches delivery on time
Packaging & Delivery
Packaging Details
3A 12VDC ,0.1A 125/250VAC 40t85 IP67 auto micro switches
1. Pack out: 1000pcs/ctn.
2. Gross weight: about 3.5kgs
Port
Guangzhou, Shenzhen & HK
Lead Time :
2weeks

3A 12VDC ,0.1A 125/250VAC 40t85 IP67 auto micro switches



Product Description



Feature

-Designed for water and dust tight(IP67)

-Small compact size

-Global safety approvals

-Long life and high reliability

-Variety of levers

-Wide range of wiring terminals

-Widely used in Automotive Electronics, Appliance and Industrial Control etc.

-Customized designs



 Parameters:

Rating0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5.
Operating FrequencyElectrical0.1A-120/3A-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative) 100mΩ Max
Insulation Resistance(at 500VDC) 100MΩ Min
Vibration durability 10~55Hz, move 0.75mm(p-p)
Dielectric Strength 500VAC (50~60Hz)
Storage Temperature -40-+85
Storage Humidity 85% RH Max
Service LifeElectrical6,000~500,000cycles(Depend on part number)
MechanicalMin.500,000cycles



Drawing:



Operating Characteristics:



Related Product







Packaging & Shipping








 Packaging list:

o.Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
(pcs)(pcs)(pcs)(Days)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5

 Shipping:



Company Information

 Greetech Advantages:

1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance





Certificates



Business Partner





Distributors Wanted
FAQ

 Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?
A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?
A:  1 - 2 years.

Q4. Could you offer us free samples?
 A) Yes, free samples could be provided within 2-5 days.

Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.

Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?
A:  Located in Huizhou city, Guangdong province, China.
     About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
