Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Zing Ear
  • Model Number: G6
  • Max. Current: 0.1A 1A 3A 5A 10A 12A
  • Max. Voltage: 125VAC 250VAC 12VDC 36VDC 48VDC
  • Operating Temperature: -25℃ - +125℃
  • Protection Level: IP00
  • Product Name: on off push high temperature electronic IP67 limit micro switch
  • Mechanical life: 1,000,000 cycles
  • Company assurance system: ISO9001 & TS16949
  • Safety approvals: UL,cUL,ENEC,CQC
  • Operating force: 50gf 100gf 150gf 200gf 250gf 300gf 350gf
  • Lever type: Straight lever, Pin Plunger, Long Straight Lever, Rollur lever
  • Electrical life: 50,000 cycles Min.
  • Terminal type: PCB Solder Screw Wire Leads terminals
  • Storage Temperature: -25℃- +85℃
  • supplier: china factory manufacturer

Packaging & Delivery

Packaging Details 1. Pack out: 1000pcs/ctn.
2. Gloss weight: about 2.7kgs
3. Shipper carton size: 400x305x220mm
Delivery Time 2~3weeks

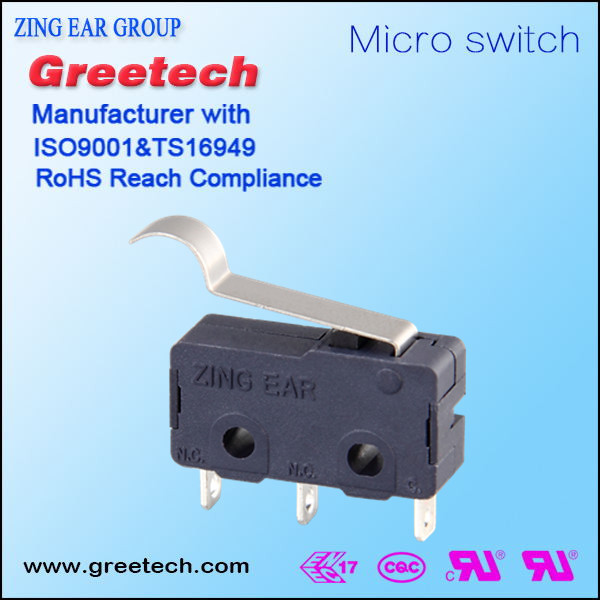

on off push high temperature limit electronic safety approvals IP67  sealed limit  micro switch


Product Description


-Small Compact Size

- Variety of Actuator and Terminals

- Global Safety Approvals

- Long Life and High Reliability

- High Rating to 10(2)A, 1/4HP

- Widely used in Auto Control  , Appliance Control

- .Customized Designs











Operating characteristic








ENEC:0.1A,125/250V  48VDC 5EA

UL: 0.1A,125/250V  48VDC

Gold Plated Contact Optional



UL: 5A, 1/8HP 125/250VAC


ENEC:10(2)A,125/250VAC U 25T125

UL: 10.1A, 1/4HP 125/250VAC

Note:250gf/Only with "OF "over "250gf"


ENEC: 12(6) A,125/250VAC 40T125

UL: 12A,  125/250VAC  Note:350gf/Only with 350gf OF

Operating Frequency


10-30 cycles/minute

Mechanical120 cycles/minute

Contact Resistance(Initiative )

100mΩ Max (without  wire type)
Insulation Resistance (at500VDC)
100mΩ Min
Dielectric strength
AC ,1,000RMS(50-60HZ)
Storage Temperature
Storage Humidity
Service Life

Electrical10,000-50,000 /cycles(Depend on part No.)




CarElectric Tooth Brush

Home Appliace , Motor Control




Related product


Packaging & Shipping




Packing List

o.Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5





Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Factory Picture:






Business Partner



Trade Record




Trade Shows

Trade Shows and Customer Visiting:



 Q1. Are you a trading company or manufacturer?
A:  Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A:   1 - 2 years.
Q4. Could you offer us free samples?
 A:Yes, free samples could be  provided within  2-5 days.

Q5. What ‘s  the lead time of mass production?
A :  About 2-4 weeks.
Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A:  Located in Huizhou city, Guangdong province, China.
      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM ?
A :  Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
