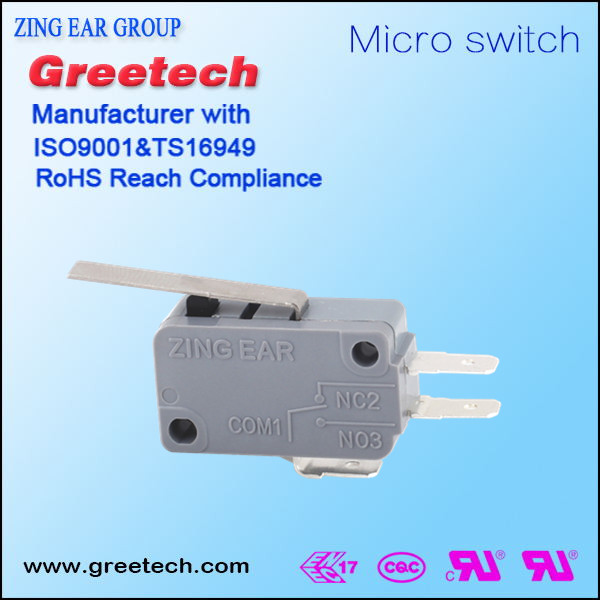

Mechanical mechanical power supply single dimmer snap action limit switch

FOB Reference Price:Get Latest Price
US $0.1-0.9 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
5000000 Piece/Pieces per Month
Port:
HK, Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Zing Ear
Model Number:
G5
Max. Current:
26A
Max. Voltage:
48VDC, 125/250VAC
Operating Temperature:
-25°C -+125°C
Protection Level:
IP40
Certificates:
UL, cUL, ENEC, CQC
Operating Force:
15gf - 400gf max.
Lever:
Variety of Levers
Unit Net Weight:
About 6.2g(No lever)
Voltage Resistance:
AC1500V, 50/60HZ, 1min
Mechanical Service Life:
10E4
Electrical Service Life:
5E4
Insulation Resistance:
100MΩ(500VDC) max.
Contact Resistance:
50mΩ max.
Environment compliance:
RoHS and Reach
Packaging & Delivery
Packaging Details
MPQ=1000pcs.
Delivery Time
2 weeks

Mechanical power supply single dimmer snap action limit switch

Product Description

Feature

-Tight Configuration,Small Contact Gap , Snap Action

-Long Life, High Reliability : 50,000cycles, 100,000 cycles optional.

-Global Safety Approvals : UL, cUL, ENEC, CQC approved.

-Variety of Terminals : Solder, PCB, Angle PCB, 187#, 250#, Screw terminals optional.

-Wide Range Operating Force: 15gf. 25gf, 50gf, 100gf. 150gf. 200gf. 300gf. 400gf max. optional.

-Wide Range Temperature Grade:  -25°C -+85°C,  -25°C -+125°C, -25°C -+150°C optional.

-With Optional PTI Grade: PTI175, PTI250 Optional.

-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,

Communication Equipments.

-Variety of Levers : Hinge lever, Roller Lever. Straight Lever. Simulated Roller Lever. Pin Pluger etc.







Drawings



Parameters







Related Product













Packaging & Shipping



Shipping



Packing List

 Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
(pcs)(pcs)(pcs)(Days)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5



Company Information

 Greetech Advantages:

1. ISO9001 & TS16949 qualified

2. Most products are produced & tested by automatics

3. Automatic machines are designed and assembled by our own team

4. Awarded as National Innovative Technology Company

5. Strong R&D team, authorized over 30 patents

6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance





 Certificates



Business Partenrs



Trade Records:



Exhibition and Customers Visiting:

FAQ

Q1. Are you a trading company or manufacturer?

A:  Yes. We are a manufacturer specializing in switches over 30 years.



Q2. What is your MOQ?

A : Normally, MOQ=100pcs.



Q3. What’s the warranty time?

A:   1 - 2 years.



Q4. Could you offer us free samples?

 A) Yes, free samples could be  provided within  2-5 days.



Q5, What ‘s  the lead time of mass production?

A :  About 2-4 weeks.



Q6. What’s the capacity per month?

A :   Over 8 million pieces per month for micro switch series.

       Over 20 million pieces per month for keyboard switch series,



Q7. Where is your plant?

A:  Located in Huizhou city, Guangdong province, China.

      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.



Q8 . Could you accept OEM or ODM ?

A :  Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
