Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ZING EAR
  • Model Number: G5T16-S1Z400
  • Max. Current: 16A
  • Max. Voltage: 125/250VAC
  • Operating Temperature: -25℃~125℃
  • Protection Level: 00
  • Size: L27.8*W10.3*H15.9mm
  • Hounting hole: 22.0mm
  • Terminal: Solder connect
  • Function: SPDT
  • Operating force: 400gf
  • Lever position: Far from pin plunger
  • Lever type: Long straight lever: 51.0mm
  • Application: Home appliance, communication, auto electronics, power tools etc.
  • Electrical life and Mechanical life: 50,000cycles and 1,000,000cycles
  • Product Name: Snap action 250V electrical mini micro interrupteur

Packaging & Delivery

Packaging Details IP67 PTI lever terminal auto machine car tight basci micro switch
1200pcs/ctn
Delivery Time Trial order: 1~4weeks. Normal order: 2~4weeks after PO received.

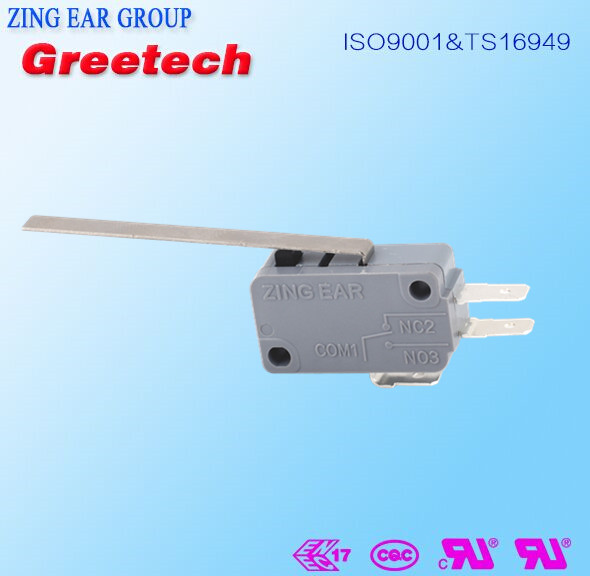

Snap action 250V electrical mini micro interrupteur



Product Description

Feature

- Tight configuration , Small Contact Gap, Snap Action,High Sensitivity and Small Operating Travel

- Long Life , High Reliability

- Global Safety Approvals

- Variety of Terminals

- Wide Range Operating Force (7gf-600gf)

- Wide Range Temperature Grade( -40℃~150℃ ), 200℃ Optional

- With Optional PTI Grade (175v,250v,600v)

- Variety of Levers

- Widley Used in Home Appliances, Electronic Equipments

- Auto Electronics, Apparatus and Instrument ,Power Tool ect

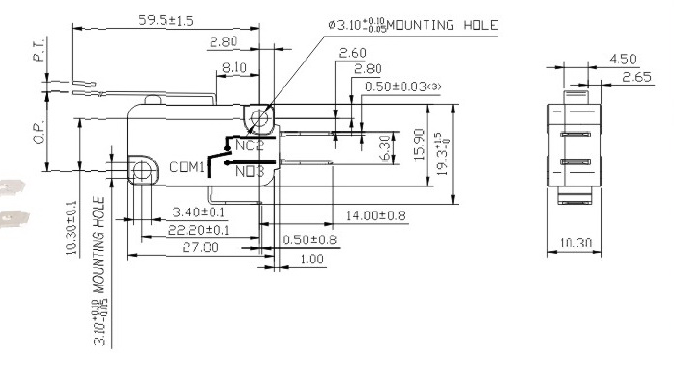

Drawing





Operating characteristic



Parameteres

Ratingw1

ENEC 0.1A 48VDC,0.1A 125/250VAC,40T85,5E4,μ

UL 0.1A 48VDC,0.1A 125/250VAC,T85

W2

ENEC 5A 125/250VAC,5A,30VDC,40T85,5E4,μ

UL 5A 125/250VAC,5A 30VDC T85

W3ENEC 10(2)A 125/250VAC,0.5A 125VDC,0.25A 250VDC T85
Operating FrequencyElectrical10~30times/min
Mechanical60times/min
Contect Resistance(Intal Value)with terminal50mΩMax
with wire type100mΩMax
Insulation Resistanceat500VDC,100MΩ Min
Dielectric StrengthBetween terminalsAC 1000V 50-60Hz 1min
Between terminals and housingAC 1500V 50-60Hz 1min
Storage Temperature

-40°C~+85°C
Storage Humidity85%RH Max
Protection Gradewith terminal typeIEC IP 67(Exclude terminal)
with wire typeIEC IP 67
Electric-shock safeguardClass ll
PTI250
LifeE-life2E4~10E4 cycle (depends on P/Ns)
 M-lifeover 500,000 cycles or 1,000,000cycles(60cycles/min)
Unit Net WeightApprox.7g(with terminal type and without lever)







Application

CarElectric Tooth Brush
Air-ConditionerToys
Communication

Home Appliace , Motor Control

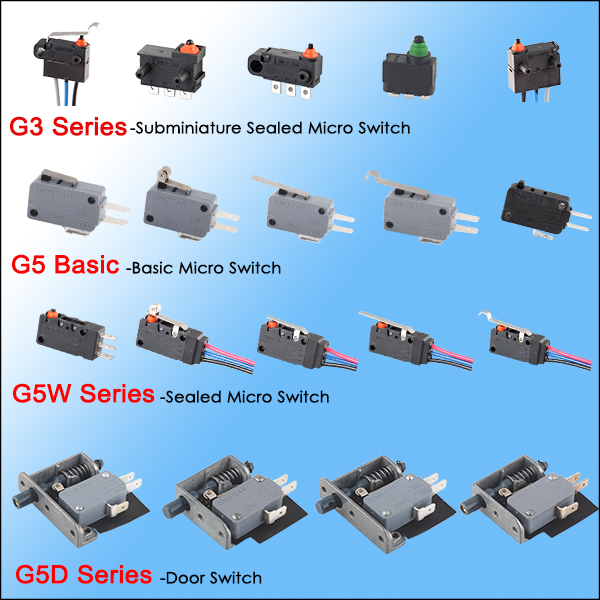

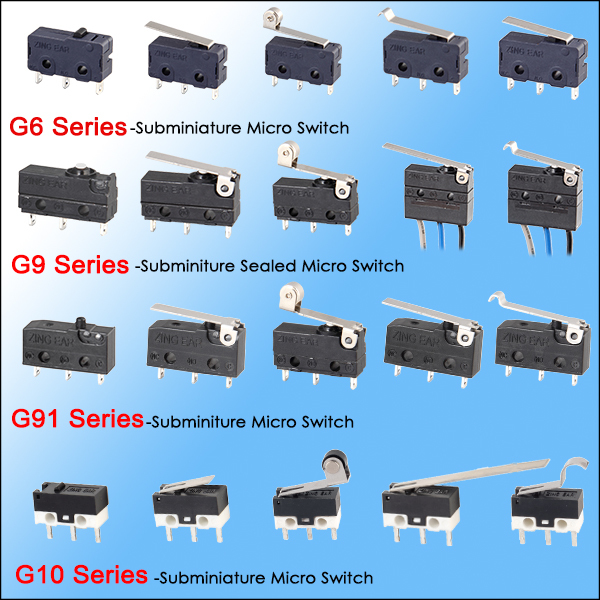

Related products







Packaging & Shipping









Packing List

o.Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
(pcs)(pcs)(pcs)(Days)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5







Shipping

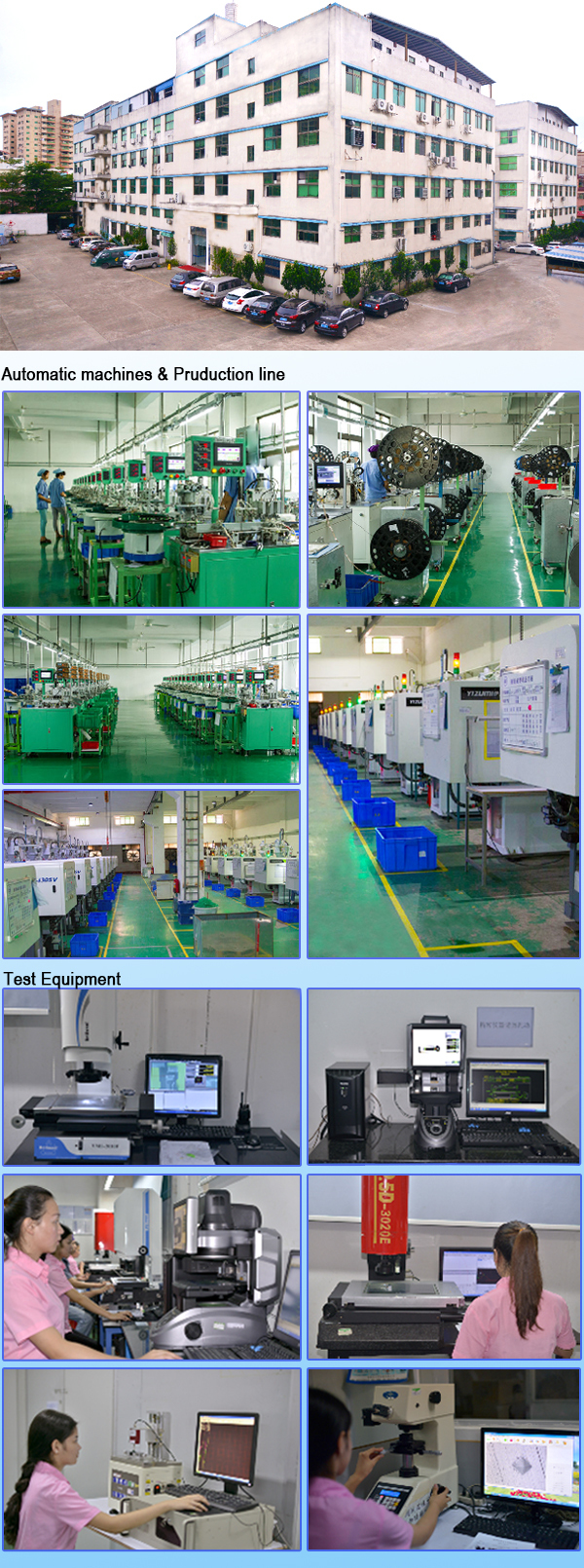

Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance



Certification





Business Partner



Trade Record





Exhibition and Customer Visiting



FAQ

 Q1. Are you a trading company or manufacturer?
A:  Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?
A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?
A:   1 - 2 years.

Q4. Could you offer us free samples?
 A:Yes, free samples could be  provided within  2-5 days.

Q5.What ‘s  the lead time of mass production?
A :  About 2-4 weeks.

Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?
A:  Located in Huizhou city, Guangdong province, China.
      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM ?
A :  Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
