0.1A 48VDC waterproof miniature slide switches

FOB Reference Price:Get Latest Price
US $0.76-0.88 / Pieces | 100 Piece/Pieces Waterproof slide switches Sample Available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZING EAR
Model Number:
G3, G3
Max. Current:
3A
Max. Voltage:
125/250VAC,48VDC
Operating Temperature:
-40℃~+85℃
Protection Level:
IP67
Product Name:
0.1A 48VDC waterproof miniature slide switches
Terminal:
Solder terminals
Lever type:
Stimulated lever
Operating force:
130gf max w.o lever
Company assurance system:
ISO9001 & TS16949
Rating:
0.1A/3A 125/250VAC 12vdc
Payment Terms:
T/T,Western Union
Mechanical life:
100,000cycles
Function:
SPDT
SupplyAbility
SupplyAbility:
3000000 Piece/Pieces per Month waterproof slide switches delivery on time
Packaging & Delivery
Packaging Details
0.1A 48VDC waterproof miniature slide switches
1. Pack out: 1000pcs/ctn.
2. Gloss weight: about 3.5kgs
Port
Guangzhou, Shenzhen & HK
Lead Time :
2weeks

0.1A 48VDC waterproof miniature slide switches

Product Description



Features

-Designed For Water and Dust Tight (IP67)

- Small Compact Size

- Global Safety Approvals

- Long Life and High Reliability

- Variety of levers

- Wide Range of writing Terminals

- Widely used in Automotive Electronics , Appliance and Industrial Control ect.

- Customized Designs

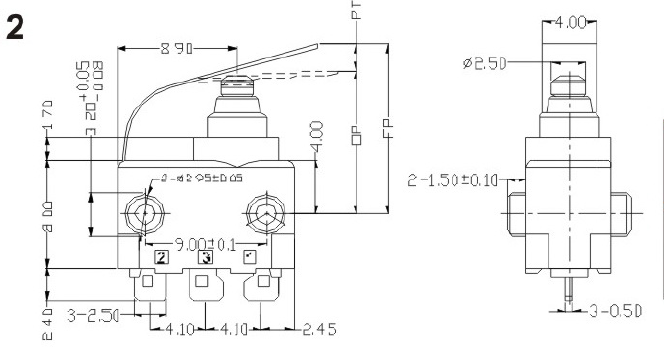

Drawing

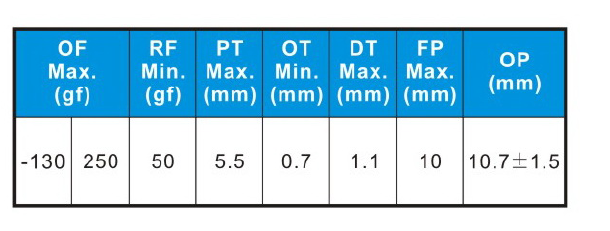

  Operating characteristic











Parameters

Rating0.1A,125/250VAC;3A/12VDC;0.1A/48VDC;µ1E5
Operating Frequency Electrical

0.1-120 cycles/minute ;

3-10˜30 cycles/minute

Mechanical120 cycles/minute

Contact Resistance(Initiative )

100mΩ Max (without  wire type)
Insulation Resistance (at500VDC) 100mΩ Min
Vibration durability10-55HZ, move 0.75mm(p-p)
Dielectric strength500VAC (50˜60HZ)
Storage Temperature -40℃~+85℃
Storage Humidity85%RHMax
Service Life Electrical Min.100,000 /cycles(Depend on part No.)
MechanicalMin .500,000/cycles





Application

CarElectric Tooth Brush
Air-ConditionerToys
Communication

Home Appliace , Motor Control



Related products



Packaging & Shipping





Packing List

o.Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
(pcs)(pcs)(pcs)(Days)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5



 Shipping



Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance





  Certificates




Exhibition and Customer Visiting



Business Partner
Distributors Wanted
FAQ

 Q1. Are you a trading company or manufacturer?
A:  Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?
A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?
A:   1 - 2 years.

Q4. Could you offer us free samples?
 A:Yes, free samples could be  provided within  2-5 days.

Q5, What ‘s  the lead time of mass production?
A :  About 2-4 weeks.

Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?
A:  Located in Huizhou city, Guangdong province, China.
      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM ?
A :  Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
