Quick Details

  • Type: Window Lifter Switch
  • Size: Standard
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ZING EAR
  • Model Number: G5W11-WZ015A01-W1
  • OE NO.: None
  • Car Make: all cars
  • Warranty: 1 Years
  • Electrical life: 10E4 cycles
  • Mechanical life: Over 500,000cycles or 1,000,000cycles(60cycles/min)
  • Rating: 0.25A/10A 125/250VAC 48VDC
  • Operating force: 30gf max w.o lever
  • Terminal: Wire Leads
  • Circuit Code: SPDT
  • Lever type: Short Straight Lever
  • Qualification: ISO9001, TS16949
  • Certification: UL, cUL, ENEC, CE, CQC, RoHS, Reach.
  • Product Name: Wire Leads Waterproof IP67 10A 125VDC Micro Switch

Packaging & Delivery

Packaging Details 1. Pack out: 1000 pcs/ctn.
2. Gloss weight: about 4.8 kgs
Delivery Time 2 weeks

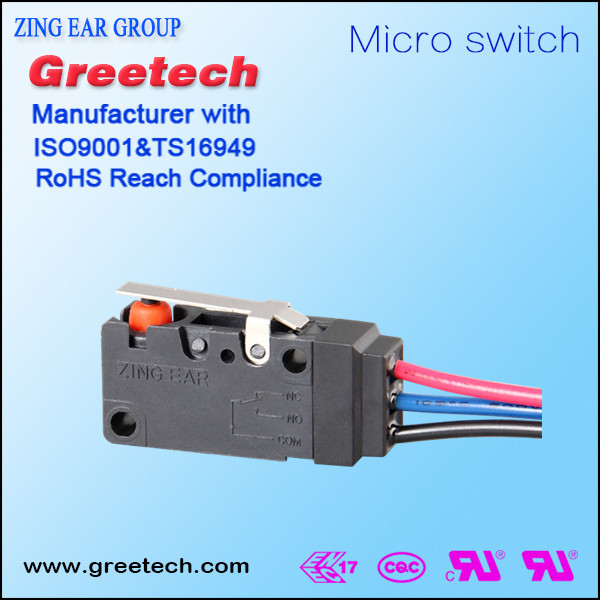

Wire Leads Waterproof IP67 10A 125VDC Micro Switch



Product Description



Feature



-Designed for water and dust tight(IP67)

-Tight Structure, Small Contact Gap Snap Action, High Sensitivity

-Global safety approvals

-Long life and High Precision and Reliability

-Variety of levers

-Widely used in Automotive Electronics, Appliance and Industrial Control etc.

-Max Approved Current at ENEC/UL us 10A

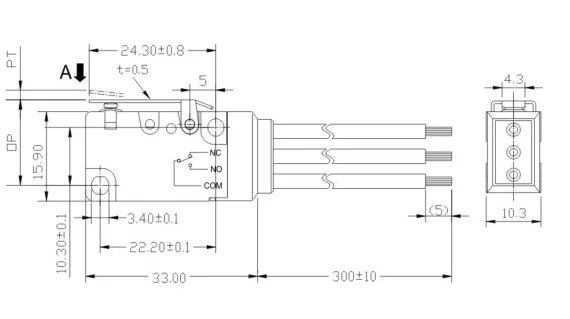

Drawing


Operating Parameters



Parameters

Rating
W1ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85
W2ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85
W3ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85
Operating Frequency
Electrical
10~30 times/min
Mechanical times/min
Contact Resistance(intial value)with terminal50mΩMax
with wire100mΩ Max(Depends on the length of the wire)
Insulation resistance at 500VDC,100MΩ Min.
Dielectric StrengthBetween terminalsAC 1000V 50-60Hz 1min
Between terminals and housingAC 1500V 50-60Hz 1min
Storage Temperature  -40°C~+85°C
Strorage Humidity 85%RH Max
Protection gradeWith terminalIEC IP67(Terminal not included)
With wireIEC IP67
Electric-shock safeguard grade Class I
PTI 250
LifeE-life2E4~10E4 cycles(depends on P/Ns)
M-lifeover 1000,000cycles(60cycles/min)
Weight Approx.7g(with terminal and without lever)



Related products













Packaging & Shipping











Packing list



No.Greetech ProductInner BoxShipper CartonMPQ
Inner box size(mm)Q'ty/Total GW(kgs)Carton size(mm)Q'ty/ctnTotal GW(kgs)MOQL/TTotal GW(kgs)
(pcs)(pcs)(pcs)(Days)
1G3 series(terminal type)310x215x1353,3603.9440x325x30013,44015.31,000151.2
2G5 series310x250x1206005.5330x270x2701,20010.81,000159
3G5W11 series310x215x1352004.8440x325x30080019.2100102.5
4G6 series290x192x405001.3400x305x2205,00012.51,000152.7
5G9 series(terminal type)290x192x405001.3400x305x2205,00012.51,000152.7
6G91 series290x192x405001.3400x305x2205,00012.51,000152.7
7G10 series290x192x406001.3400x305x2206,00012.51,000152.7
8GT02 series210x155x553001.2440x325x2856,000126,0001512
9GPS100 series///330*270*270606.160106.1
10Switch with wire leads310x215x1351001.8440x325x30080014.58002014.5





Shipping way





Company Information



Greetech Advantages:


1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance










Certificates





Business Partner

Exhibitions & Customer visiting



Distributors Wanted



FAQ



Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in switches over 30 years.



Q2. What is your MOQ?

A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?
A: 1 - 2 years.

Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.

Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.

Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?
A:  Located in Huizhou city, Guangdong province, China.
     About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
