Auto Electronics, Air conditioner,communication, tooth brush, toys etc
Rating:
0.1A 12VDC, 50uA 5VDC, 20uA 12VDC 20mA 12VDC
Terminal:
Wire leads, Solder Terminal, PCB Terminals
Modle:
Slider Switch, Waterproof Switch, Car Windows Switch
Electrical life:
100,000 cycles
Mechanical life:
500,000 cycles
Function:
SPDT \SPST-NC\SPST-NO
Post:
right side posts, Left side posts
Product name:
ENEC UL CE ROHS electrical mini waterproof micro switch 12v
Packaging & Delivery
Packaging Details
ENEC UL CE ROHS certificated electrical mini microswitch
1. Pack out: 1000pcs/ctn.
2. Gloss weight: about 3.5kgs
Delivery Time
2 -4 weeks

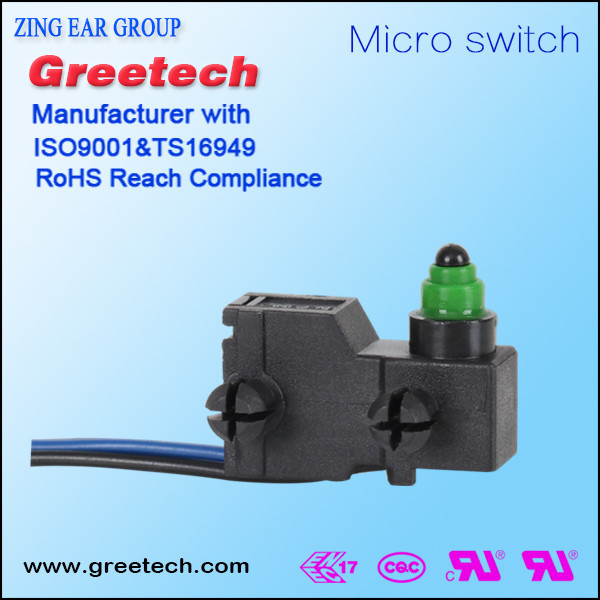

ENEC UL CE ROHS certificated electrical mini waterproof micro switch 12v
Product Description
Features
-Designed For Water and Dust Tight (IP67)
- Small Compact Size
- Global Safety Approvals
- Long Life and High Reliability
- Variety of levers
- Wide Range of writing Terminals
- Widely used in Automotive Electronics , Appliance and Industrial Control ect.
- Customized Designs

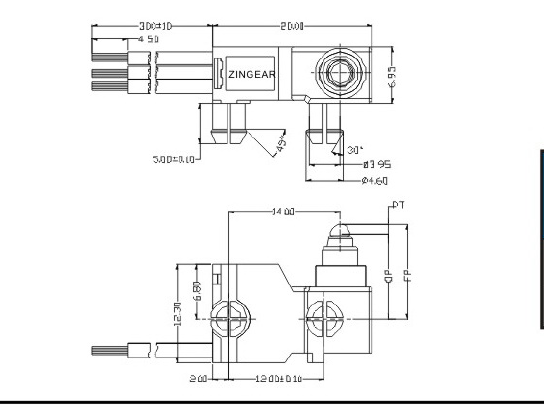

Drawing

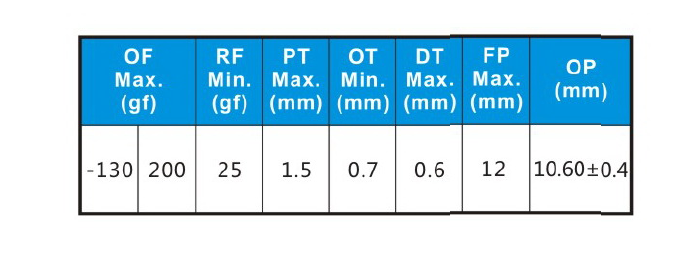

Operating characteristic
Parameters
Rating
0.1A,125/250VAC;3A/12VDC;0.1A/48VDC;µ1E5
Operating Frequency
Electrical
0.1-120 cycles/minute ;
3-10˜30 cycles/minute
Mechanical
120 cycles/minute
Contact Resistance(Initiative )
100mΩ Max (without wire type)
Insulation Resistance (at500VDC)
100mΩ Min
Vibration durability
10-55HZ, move 0.75mm(p-p)
Dielectric strength
500VAC (50˜60HZ)
Storage Temperature
-40℃~+85℃
Storage Humidity
85%RHMax
Service Life
Electrical
Min.100,000 /cycles(Depend on part No.)
Mechanical
Min .500,000/cycles
Application
Car
Electric Tooth Brush
Air-Conditioner
Toys
Communication
Home Appliace , Motor Control
Related products
Packaging & Shipping
Packing List
o.
Greetech Product
Inner Box
Shipper Carton
MPQ
Inner box size(mm)
Q'ty/
Total GW(kgs)
Carton size(mm)
Q'ty/ctn
Total GW(kgs)
MOQ
L/T
Total GW(kgs)
(pcs)
(pcs)
(pcs)
(Days)
1
G3 series(terminal type)
310x215x135
3,360
3.9
440x325x300
13,440
15.3
1,000
15
1.2
2
G5 series
310x250x120
600
5.5
330x270x270
1,200
10.8
1,000
15
9
3
G5W11 series
310x215x135
200
4.8
440x325x300
800
19.2
100
10
2.5
4
G6 series
290x192x40
500
1.3
400x305x220
5,000
12.5
1,000
15
2.7
5
G9 series(terminal type)
290x192x40
500
1.3
400x305x220
5,000
12.5
1,000
15
2.7
6
G91 series
290x192x40
500
1.3
400x305x220
5,000
12.5
1,000
15
2.7
7
G10 series
290x192x40
600
1.3
400x305x220
6,000
12.5
1,000
15
2.7
8
GT02 series
210x155x55
300
1.2
440x325x285
6,000
12
6,000
15
12
9
GPS100 series
/
/
/
330*270*270
60
6.1
60
10
6.1
10
Switch with wire leads
310x215x135
100
1.8
440x325x300
800
14.5
800
20
14.5
Shipping
Company Information
Greetech Advantages: 1. ISO9001 & TS16949 qualified 2. Most products are produced & tested by automatics 3. Automatic machines are designed and assembled by our own team 4. Awarded as National Innovative Technology Company 5. Strong R&D team, authorized over 30 patents 6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Exhibition and Customer Visiting
Business Partner
Distributors Wanted
FAQ
Q1. Are you a trading company or manufacturer? A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ? A : Normally, MOQ=100pcs. Q3. What’s the warranty time? A: 1 - 2 years. Q4. Could you offer us free samples? A:Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production? A : About 2-4 weeks. Q6. What’s the capacity per month? A : Over 8 million pieces per month for micro switch series. Over 20 million pieces per month for keyboard switch series. Q7. Where is your plant? A: Located in Huizhou city, Guangdong province, China. About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ? A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
