Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Greetech
  • Model Number: G304-130U00E44
  • Max. Current: 50uA 20uA 20mA 0.1A
  • Max. Voltage: 5 VDC , 12VDC
  • Operating Temperature: 40T85
  • Protection Level: IP67
  • Rating: 0.1A 12VDC, 50uA 5VDC, 20uA 12VDC 20mA 12VDC
  • Electrical life: 300,000 cycles
  • Mechanical life: 300,000 cycles
  • Operating force: 130gf max. with lever
  • Terminal: Wire leads, Solder Terminal, PCB Terminals
  • Function: SPDT ,SPST-NC,SPST-NO
  • Post: right side posts, Left side posts
  • Application: Auto Electronics, Air conditioner,communication, tooth brush, toys etc
  • Modle: Slider Switch
  • Competitor: Automotive 0.1A 12VDC Plastic Waterproof Micro Slide Switch

Packaging & Delivery

Packaging Details 1. Pack out: 1000pcs/ctn.
2. Gloss weight: about 3.5kgs
Delivery Time 2 -4 weeks

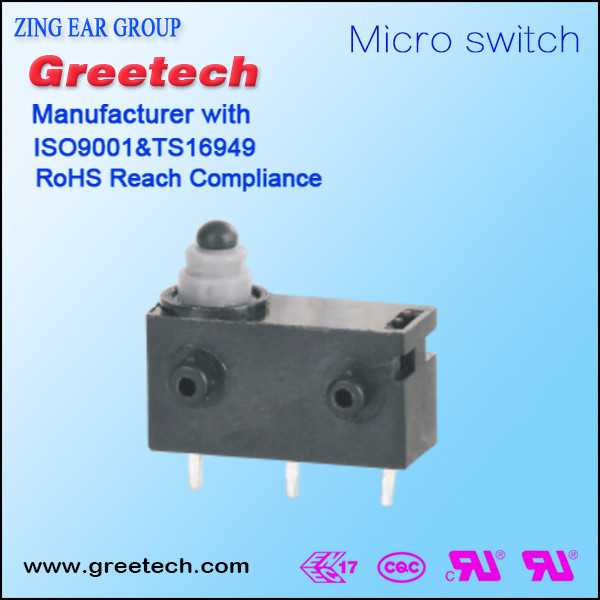

Automotive 0.1A 12VDC  Plastic Waterproof Micro Slide Switch

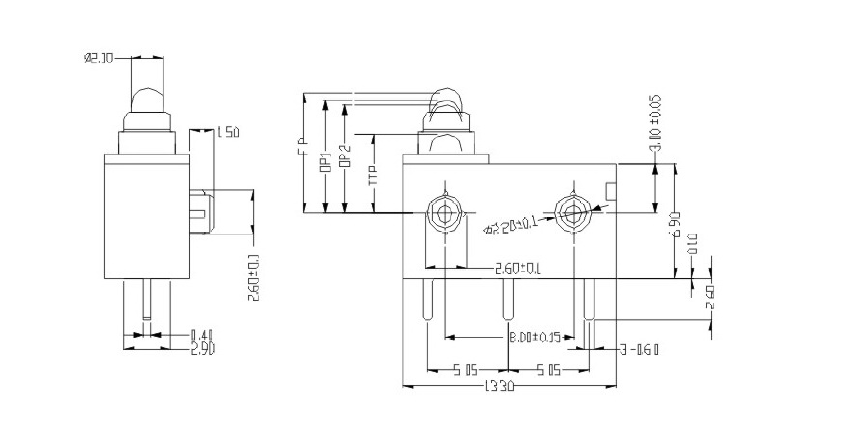

Drawing:

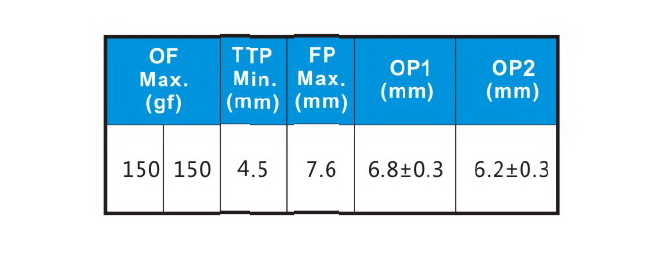

Parameters:

Rating 0.1A 12VDC, 50uA 5VDC, 20uA 12VDC 20mA 12VDC
Operating FrequencyElectrical20 cycles/minute
Mechanical120cycles/minute
Contact Resistance(Initiative)100mΩ Max
Insulation Resistance(at 500VDC)100MΩ Min
Vibration durability10~55Hz,move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Storage Temperature-40°C - +85°C
Storage Humidity85% RH Max
Service LifeElectrical300,000cycles
Mechanical300,000cycles



Related Products



Packaging & Shipping

Package Listing:

Shipping way:



Company Information

Greetech  advantage:

1. ISO9001 & TS16949 qualified

2. Most products are produced & tested by automatics

3. Automatic machines are designed and assembled by our own team

4. Awarded as National Innovative Technology Company

5. Strong R&D team, authorized over 30 patents

6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance

Factory picture



Certifications





Business Partner





Trade Shows



FAQ

FAQ :

Q1. Are you a trading company or manufacturer?

A:  Yes. We are a manufacturer specializing in switches over 30 years.



Q2. What is your MOQ?

A : Normally, MOQ=100pcs.



Q3. What’s the warranty time?

A:   1 - 2 years.



Q4. Could you offer us free samples?

 A) Yes, free samples could be  provided within  2-5 days.



Q5, What ‘s  the lead time of mass production?

A :  About 2-4 weeks.



Q6. What’s the capacity per month?

A :   Over 8 million pieces per month for micro switch series.

       Over 20 million pieces per month for keyboard switch series,



Q7. Where is your plant?

A:  Located in Huizhou city, Guangdong province, China.

      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.



Q8 . Could you accept OEM or ODM ?

A :  Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
